SX 440 [E000-24030]

AVR CARD

SX 440 [E000-24030]

SX 440 [E000-24030]

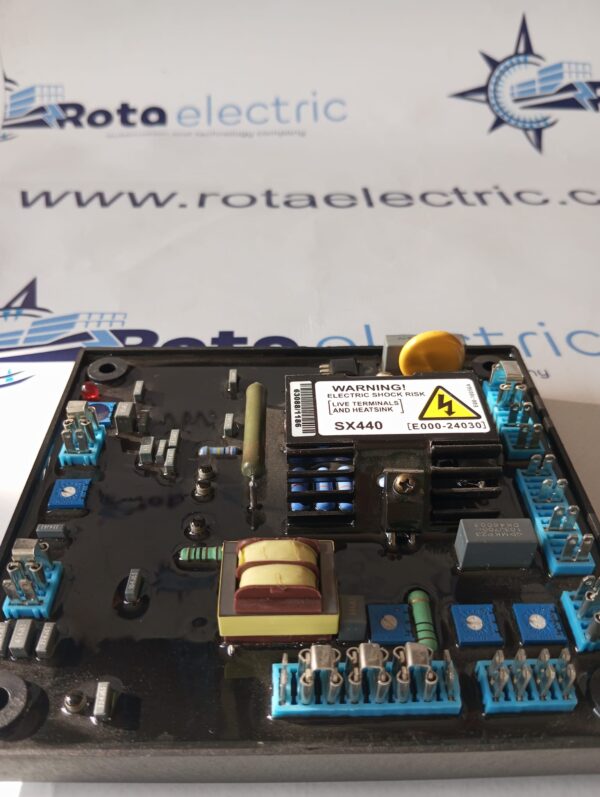

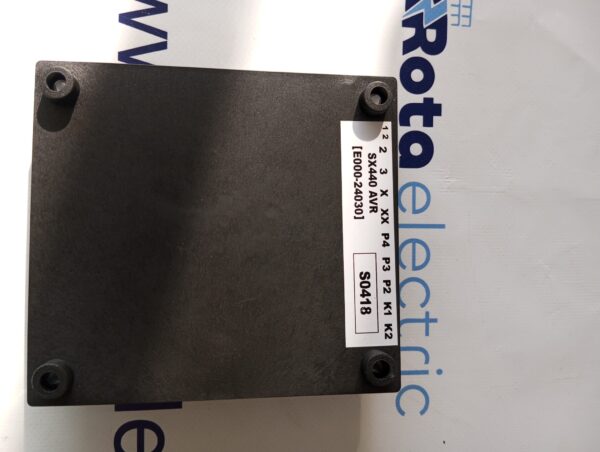

SX440 is a half-wave phase-controlled thyristor type
Automatic Voltage Regulator (AVR) and forms part of the
excitation system for a brush-less generator.

Kategoriler: Otomasyon Etiketler: AVR CARD, SX440, SX440 E000-24030

Açıklama

Description

INPUT
Voltage 190-264V ac
Frequency 50-60 Hz nominal
Phase 1
Wire 2
OUTPUT
Voltage max 90V dc at 207V ac input
Current continuous 4A dc
Intermittent 6A for 10 secs
Resistance 15 ohms minimum
